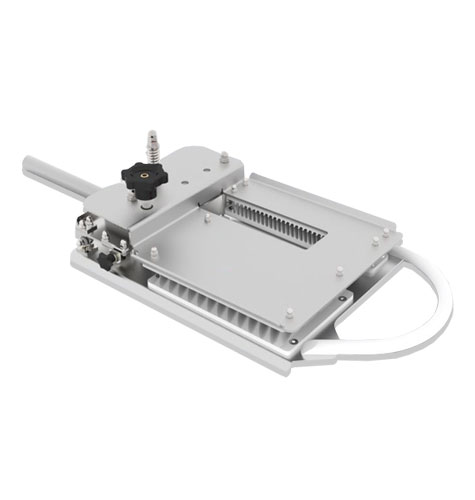

Mechnical Spreading Unit

• The mechanical LS 30 plate type selvedge openers made of stainless steel and resistant to moisture and chemical influence. The spreading fines are set diagonally to the direction of the web and uncurl the rolled edges of knitted fabrics. The spreading effects can be adjusted to the needs of different types of fabric by adjusting the distance between two plates. Mechanical edge openers do not require any external form of energy.

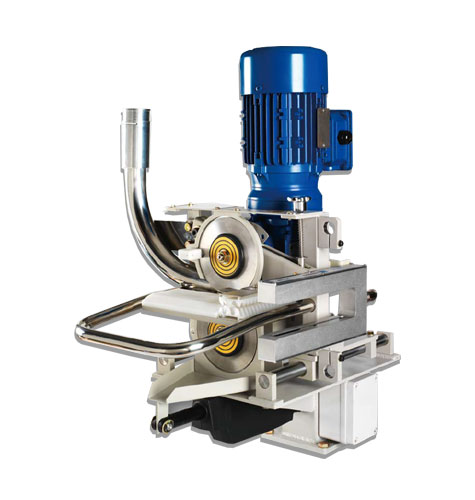

Selvedge Cutting (For Knitted Fabric)

• The edge cutter is used in pairs on the out feed of the stenter for cutting the glued edges of the web. The reliable shear cutting technology with powered top blade ensures a precise cutting results. The contact pressure b/w the top blade and the bottom blade can be adjusted using a spring and transfers the rotary movement to the bottom blade.

Gumming Unit

• This system applies gum to the selvedge and prevent selvedge curling perfectly. Application tank maintains a constant gum level thus ensuring minimum and steady gum application.

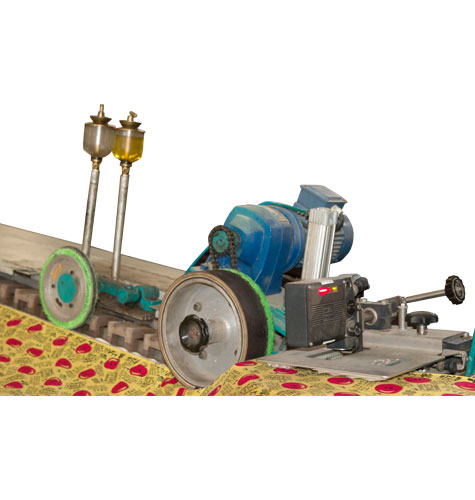

Pinning Unit (For Knitted Fabrics)

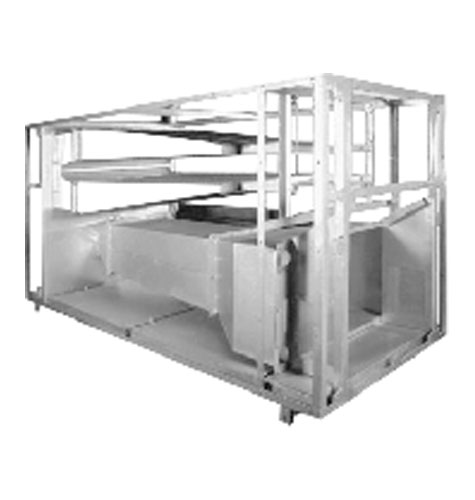

View of open Chamber

• Close circuit design, Radial fans, detachable nozzles, oil heated/gas fired, on line filter cleaning etc.

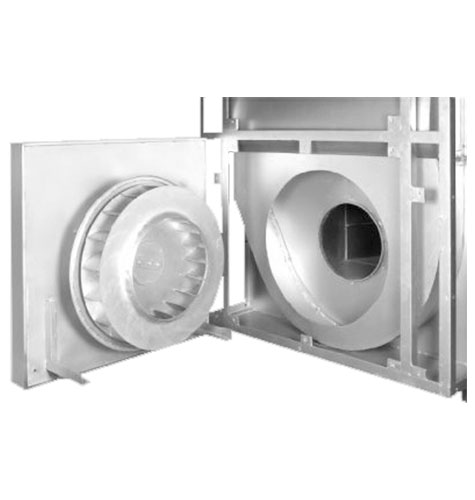

High efficiency Blowers

• Specially designed high efficient radial impellers give most effective hot air circulation and unique nozzles gives most effective drying. Impellers are well balanced. Inspection, cleaning etc. are very easy, thanks to big inspection windows on blower sockets.

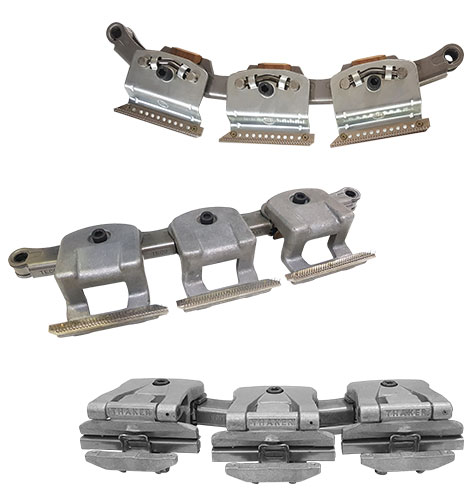

Main Chain

• Chain Link made of high carbon steel with high tensile strength Sintered Bronze.
• Chain assembly (Lubrication Type) Big Liner Riveted & Small Liner specially flared.
• Running Speed well in excess of 150 m/min.
• Design as pin chain, clip chain or combined pin / clip chain.

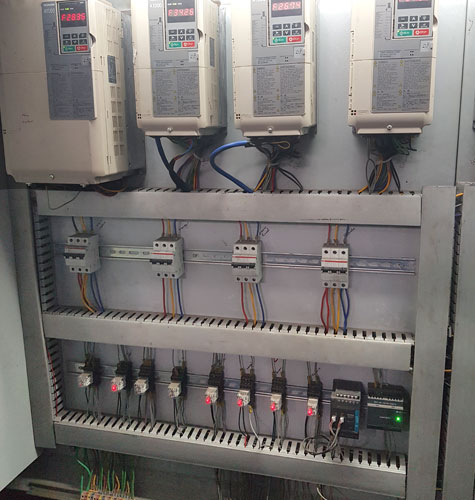

Electric Control Panel

• Steel Fabricated electrical control panel consist of necessary switch gears like main switch fuse unit, contractors, relays, MCB.A.C. drives etc.
• Optionally - Industrial A.C. is supplied along with panel for long life of drivers where room temperature is above normal.

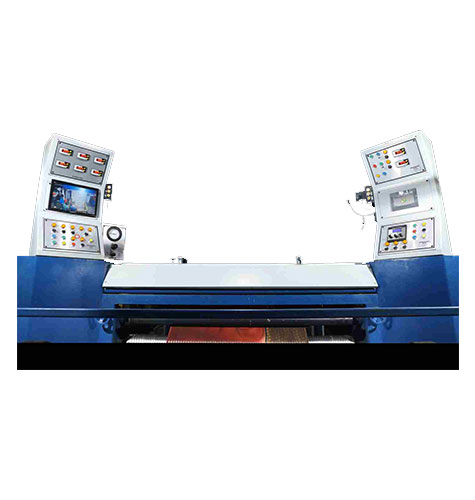

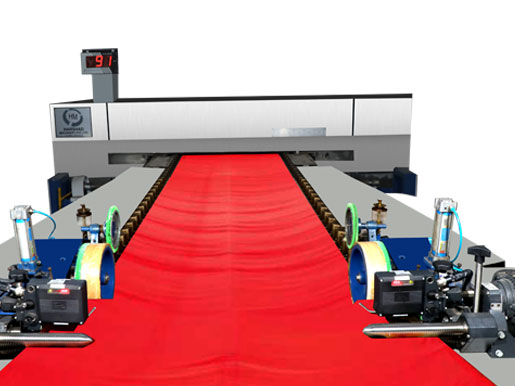

Feeding Desk With Cockpit

• The control board Cockpit gives all the information regarding machine controls.
• User Friendly machine controls.

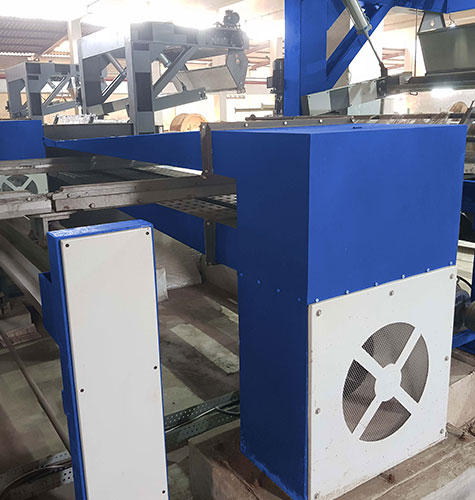

Air Cooling System

• Blowing ambient air via turbo fan on to the fabric through top and bottom nozzles is ideal for all types of fabrics.

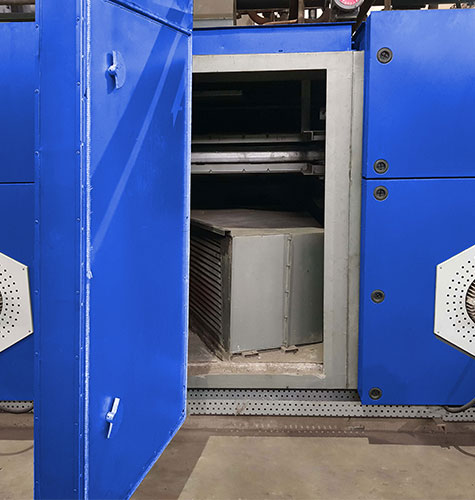

Chamber Inside View

• The chambers widened inside space facilitates easy maintenance..

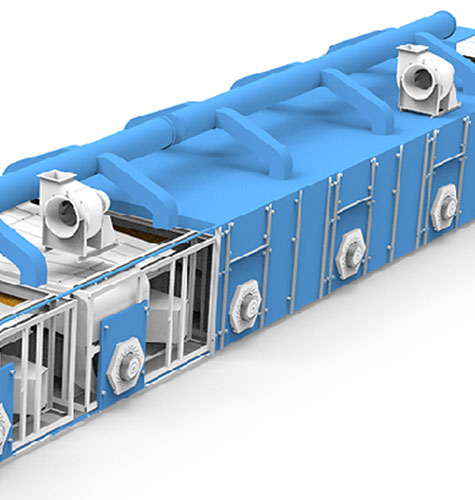

Exhaust System
