Technical data of the HM Relax Dryer
- Working width : 600-3600mm others on request
- No. of passes : 1 / 2 / 3
- Temperature : Maximum 225c
- Evaporation Capacity : 230kg water per hour and per chamber
- Machine speed : 0-30m/min higher speed according to the plant requirements
- Fabric guidance : Single and multiple-track, according to requirement
- Heating System : Steam, direct gas, or thermic oil
- Power : Entry Exit 4.4kw Main - Drive 3.5kw - Chamber per each 15.0kw

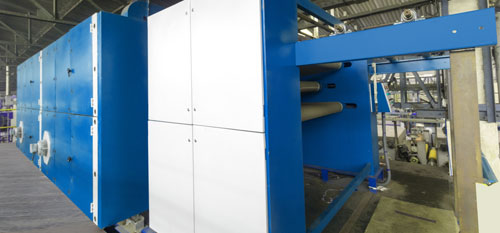

HM Conveyer Relax Dryer is designed for finishing woven and knitted fabrics. It can be used for
- Drying
- Shrinking
- Intermediate Drying
- Effect Drying
HM Conveyer Relax Dryer is suitable for
- Achieving controlled shrinkage
- Developing volume
- Improving handle
- Effect drying
The machine also offers continously variable adjustment of airing intensity and hence of fabric dynamics. Other equipments details are as under
- Star-jet stepped nozzles(modifications of the protected stae-jet nozzle system)
- Econ-Air air flow control system
- Fan-assisted oil and gas
- Conveyer relax dryer working width 1000mm to 3200mm
- High production and Low costs
