Make an innovative idea to improve the working of machine making auto Servo System Model. Harshad Machinery is making a fabric folding machine which is a highly effective tool for folding the fabric which cares original length and maintains accuracy. The Folding Machines are designed with double fold and work in auto mode.

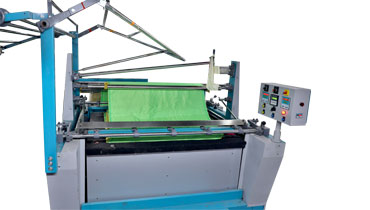

Auto Fabric Folding Machine (Servo System)
- Servo Drive Motor
- Auto/Manual + IP Rating 65 Programmer Operating
- Easy to change of fold size
- View Running Feature on Display
- Total production meter length of fold
- Adjustable M/C speed
- All function operated soft touch programmer PLC
- Negligible maintenance, lower maintenance parts
- Adjustable fold length 75 to 103 cms
- Fan drive in servo, Table drive AC VFD drive
- Dimension : 1753 mm length x 2033 mm width x 1165 mm height
- Main shaft in EN8 Material
- Due to accuracy, growth achieved in production
- Adjustable M/C speed
- Folding length size 0-103cm
- Accuracy control
- Run in auto mode
- Pallet ( Table ) Auto Up-Down
- System Controller
- Length counter meter
- Manually table up-down switch option
- Emergency stop switch
Auto Table
- Table up-down movement through electrical controls Auto/Manual
- Empty table can be up manually in 25 seconds
- Table total down size 23 inch
- Table has the ability to lift more weight
- When needed the table board could be pulled out from the table
- Fabric guide bar
- Guide channel
- Fan angle V board etc are made of SS material
